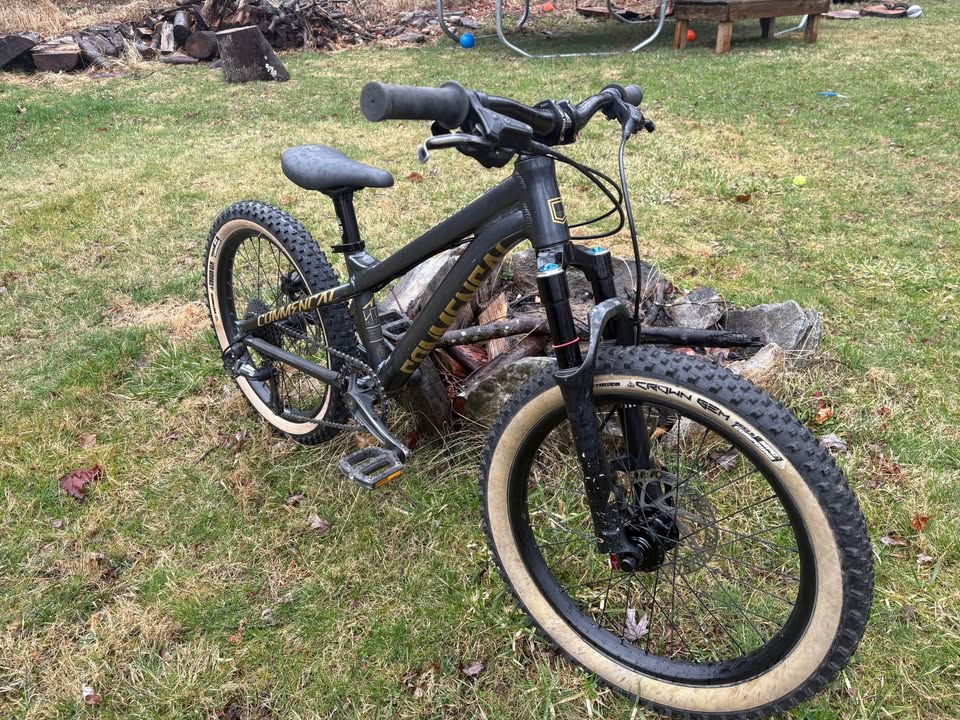

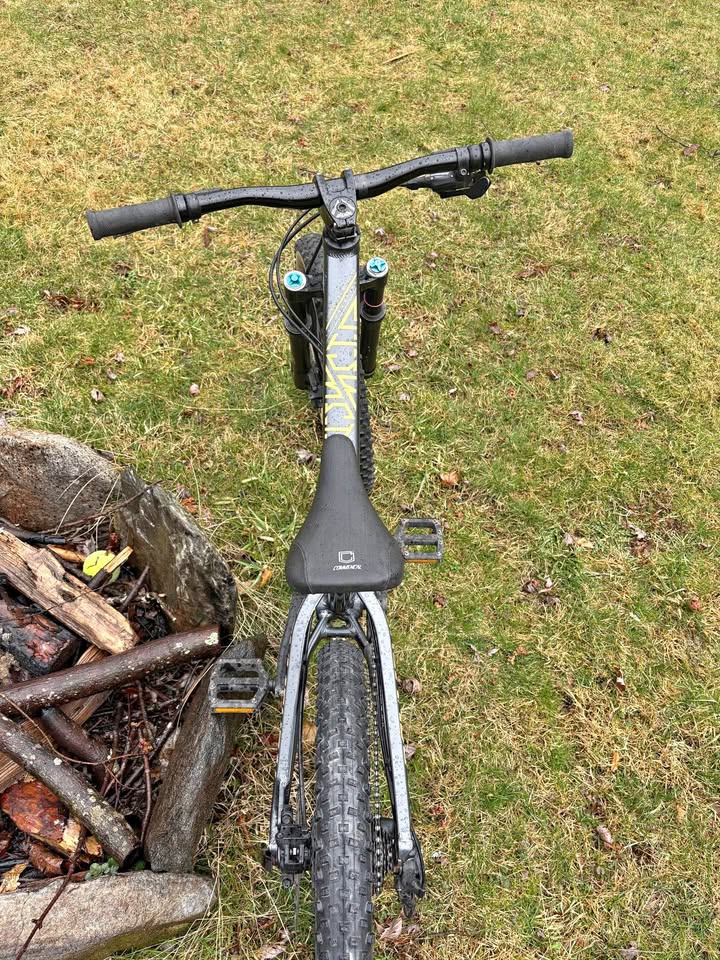

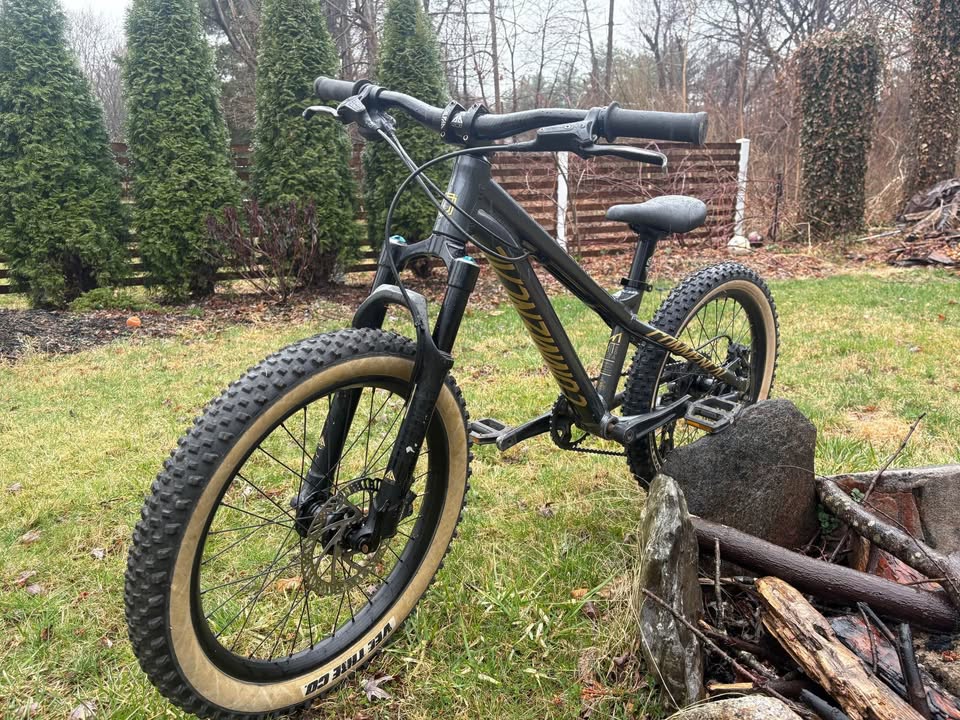

Commencal Meta HT 20” kids mountain bike

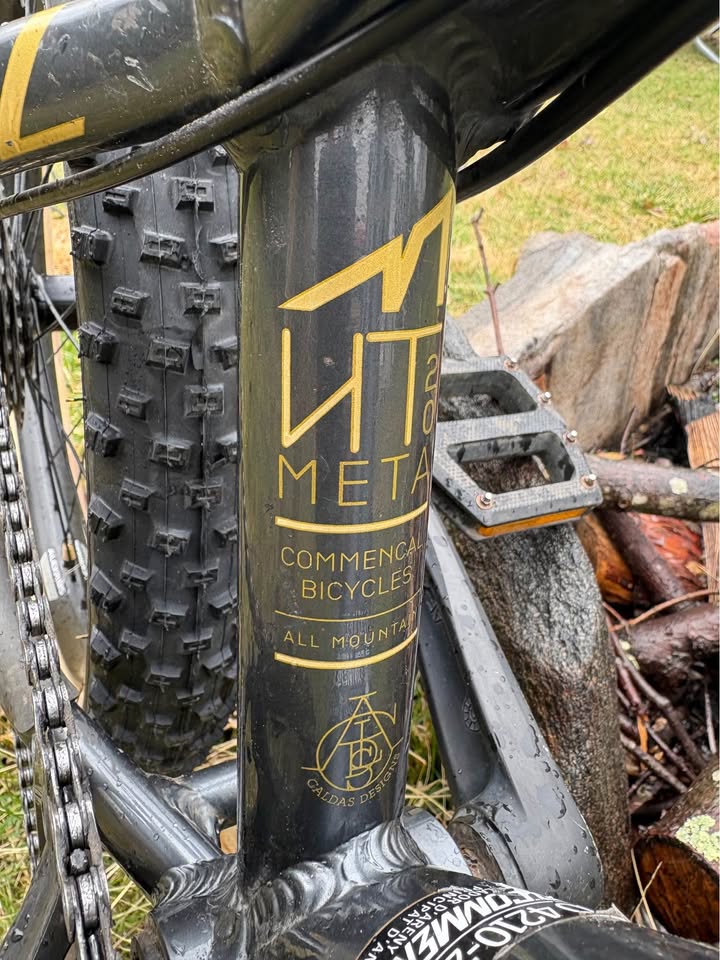

Frame

META HT 20
20’’, Alloy 6061, triple butted tubes, T4, T6.

Fork

MANITOU Machete Junit Pro, 100 mm travel
20", kids specific air cartridge, rebound, compression. Custom tuned for Commencal Bicycles. Boost (15 x 110 mm)

Headset

ACROS ZS44 / ZS56
Alloy cups, sealed bearings

Stem

RIDE ALPHA Freeride 40 mm
40 mm extension, 31,8 mm

Handlebar

PROTAPER Junit Riser bar
31,8 mm, 600 mm width, 25 mm rise

Grips

PROTAPER Junit Intermediate
Kids specific 27 mm diameter

Brakes

SRAM Level, 2 pistons, Hydraulic disc brake, steel-backed organic pads
Rotors: SRAM G2 CleanSweep 180 / 160 mm, 6-bolt

Shifters

SRAM GX
10s

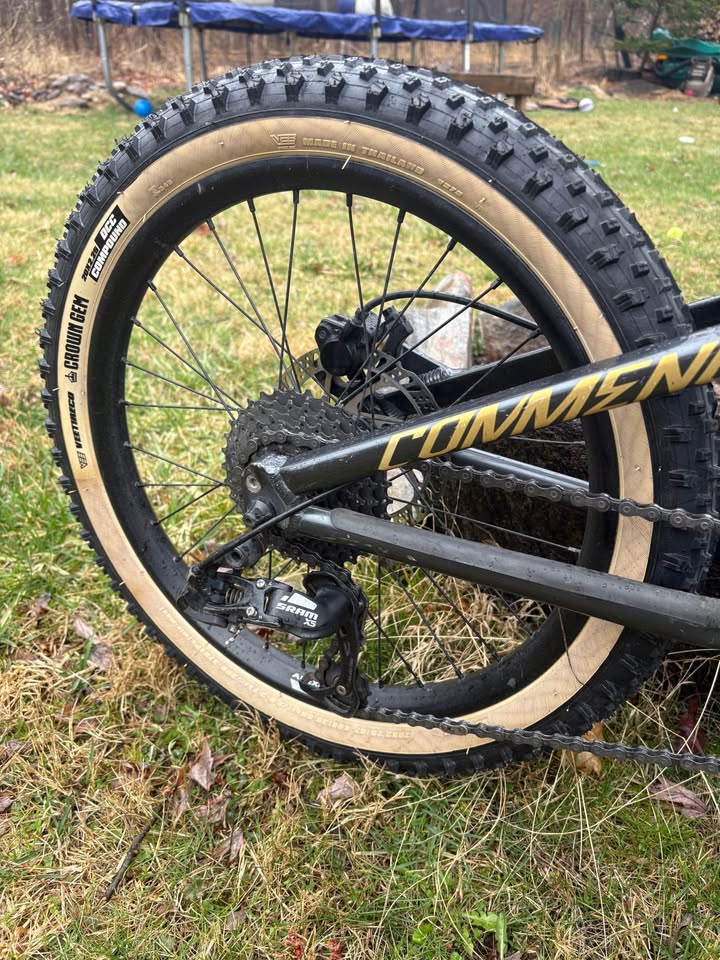

REAR DERAILLEUR

SRAM GX
10s, short cage

Bottom bracket

AEROZINE BSA 30
Threaded

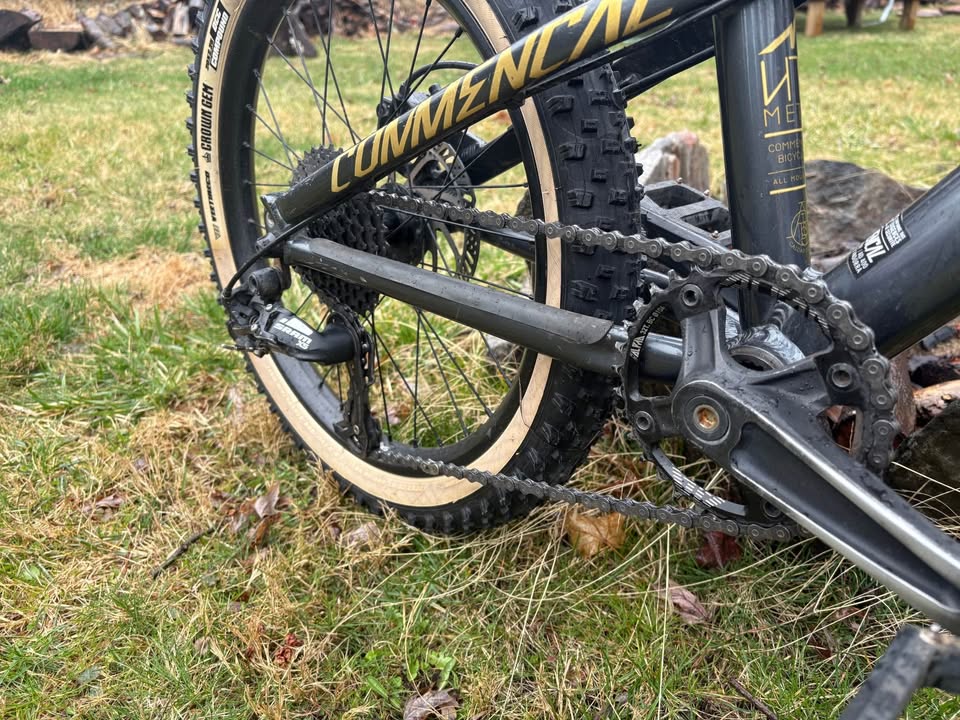

Crankset

AEROZINE Xeon-A1, 135 mm crank arms, 30 mm axle, 7075 alloy
Chainring: AEROZINE Direct Mount 30t, Narrow-Wide, full CNC

Chain

KMC X10
10s

Cassette

SRAM PG-1020
10s, 11-36t

Rims

ALEXRIMS MD30
20'', 28h, 30 mm inner width

Hubs

Front: FORMULA RX-26 - Rear: FORMULA DC-711
Rear: 28h, sealed bearings, 9 x 135 mm (for QR axle), Shimano Hyperglide - Front: 28h, sealed bearings, 15 x 110 mm

Spokes/nipples

SAPIM Leader
J-Bend 2.0 mm, double butted, stainless, with Nylok, black

Tyres

Rear: MAXXIS DHR II - Front: MAXXIS DHR II
Rear: 20'' x 2.3", Clincher - Front: 20'' x 2.3", Clincher

Seat post

RIDE ALPHA
31,6 mm, 250 mm length

Saddle

SDG Fly Jr
122 mm width, kids specific, reinforced sides

Weight

10,6 kg / 23.36 lb
Without pedals. Weight may differ slightly due to manufacturing tolerances.

Colour

Champagne
Matte Finish
